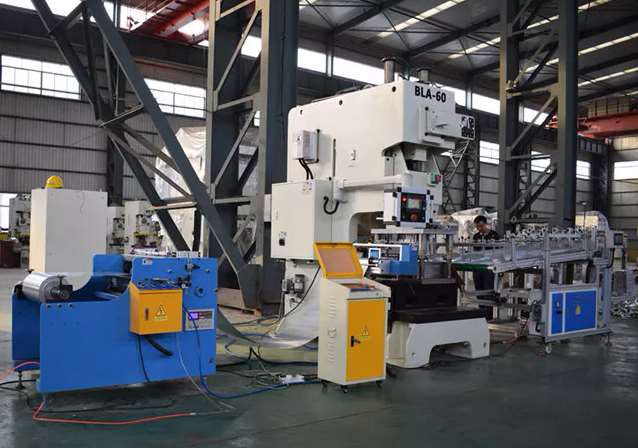

The auto feeder is a critical component in the aluminum foil food box/container production line. It enhances efficiency and precision in the manufacturing process. This article introduces the working principles, basic parameters, configuration, and performance features of the auto feeder. We also provide guidance on how to make inquiries for further information.
Working Principle

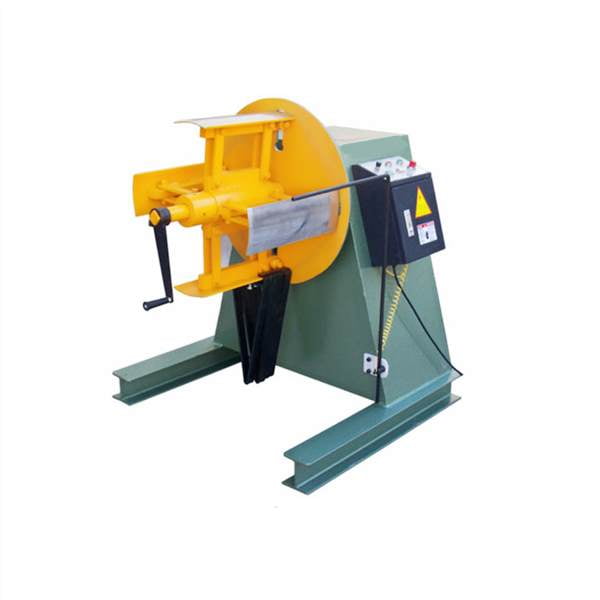

The auto feeder, equipped with a coil auto decoiler and lubrication system, works by automating the feeding of aluminum foil into the production line. This ensures a continuous and consistent supply, improving overall efficiency and reducing manual intervention.
Basic Parameters
Here are the key specifications of the auto feeder for aluminum foil food box/container production lines:
- Maximum Diameter of Material: φ1000mm
- Smallest Inner Diameter of Material: φ75mm
- Maximum Material Width: 1280mm
- Maximum Coil Weight: 500kg
- Feeding Speed: 0-30M/min
- Feeding Length: 0-9999mm
- Feeding Accuracy: ±0.2mm
- Machine Power: 2kw
- Working Voltage: 380V/220V
- Dimensions: 230012001200mm
Basic Configuration
The auto feeder includes the following components:
- Research Control Drive
- Mitsubishi Series PLC
- Shenzhen Samkoon Seven-Inch Touch Color Screen
- Japan Izumi Relay
- High-Quality Switching Power Supply
- Domestic High-Quality Servo Motor
Performance Description
The auto feeder boasts several performance features that make it a valuable addition to the production line:
- Separate Design: The material rack and the feeding head are designed separately. The feeding head is installed on the punching machine, making feeding adjustments convenient.
- Robust Frame: The frame adopts an integral all-steel structure with superimposed modules, ensuring high feeding accuracy.
- Zero-Tension Feeding: It features zero-tension free tracking feeding with easy and quick left-right centering adjustments.
- Imported Magnetic Powder Brake: The unwinding tension uses an imported magnetic powder brake, suitable for long-term uninterrupted work.
- Ease of Use: The feeding machine simplifies unwinding and feeding processes. It features double stick refueling and a large oil tank capacity.
Why Choose the Auto Feeder?
Investing in an auto feeder for your aluminum foil food box/container production line offers numerous benefits:
- Enhanced Efficiency: Automates the feeding process, significantly increasing production speed and reducing labor costs.
- Consistent Quality: Ensures precise feeding, leading to consistent product quality and minimal waste.
- Durability: Built from durable materials, the auto feeder is designed for continuous operation with minimal maintenance.
- Flexibility: Adjustable feeding speed and easy integration into existing production lines allow for flexible operation.
- Compliance: Meets industry standards, ensuring safe and hygienic production.
Cost Analysis and Investment
When considering an auto feeder, it is essential to evaluate both the initial costs and the long-term benefits:
- Initial Investment: The cost varies based on specifications and features. High-quality models with advanced features may have a higher upfront cost but offer greater long-term value.
- Long-Term Savings: Reduced labor costs, increased production efficiency, and lower material waste lead to significant savings over time.
- ROI Calculation: Consider the increased production capacity and reduced operational costs. Many manufacturers find the ROI favorable, with the machine paying for itself within a few years.
Send Inquire
To learn more about the auto feeder and its benefits for aluminum foil food box/container production lines, potential customers are encouraged to send inquiries. Our team of experts is ready to provide detailed information and personalized advice.
Contact Us Today
Investing in an auto feeder can transform your production line, enhancing efficiency, quality, and profitability. For more information or to request a quote, please contact us through the inquiry form on our website. Our team will respond promptly to assist you.
The machine is a vital component for enhancing efficiency and precision in aluminum foil food box/container production lines. Its advanced features and robust design make it an invaluable investment. By choosing the right auto feeder, you can ensure consistent product quality, reduce waste, and achieve significant cost savings. For detailed information and personalized guidance, do not hesitate to send us an inquiry.
