1. Series Overview
The 1300mm tape slitting machine is the core equipment in adhesive tape production lines, designed to slit jumbo parent rolls into finished rolls of required widths. This series includes four models – Fully Automatic Cut-to-Length, Factory All-Round, High-Efficiency General-Purpose, and Entry-Level – covering every production stage from startup operations to large-scale automated manufacturing.
All four models are suitable for slitting transparent BOPP packing tape, printed tape, PVC electrical tape, double-sided tape, masking tape, kraft paper tape, PET tape, and cloth tape. With a maximum slitting width of 1300mm and 4-shaft turret rewind with non-stop shaft change, these machines deliver significant productivity gains.
2. Four Models in Detail
2.1 🤖 Fully Automatic Cut-to-Length – Maximum Efficiency · Full Automation
Positioning: Large-scale tape manufacturers pursuing maximum efficiency and full automation
Key Specifications:
- Machine Dimension: 3000×1850×1500mm
- Machine Weight: 1800kg
- Frame Material: National standard 25mm thick 45# high-carbon steel
- Max Speed: 0-280m/min
- Min Slitting Width: 10mm
- Max Rewind Diameter: Φ260mm (4-shaft turret exchange)
- Motor Power: 5kW
Core Features:
- Automatic Cut-to-Length – Automatically cuts at preset length with clean, precise edges; no manual intervention required
- Automatic Smoothing Device – Ensures bubble-free, flat tape surface
- Front & Rear Dual Magnetic Powder Tension Control – Precise and stable tension; consistent tension across large and small rolls

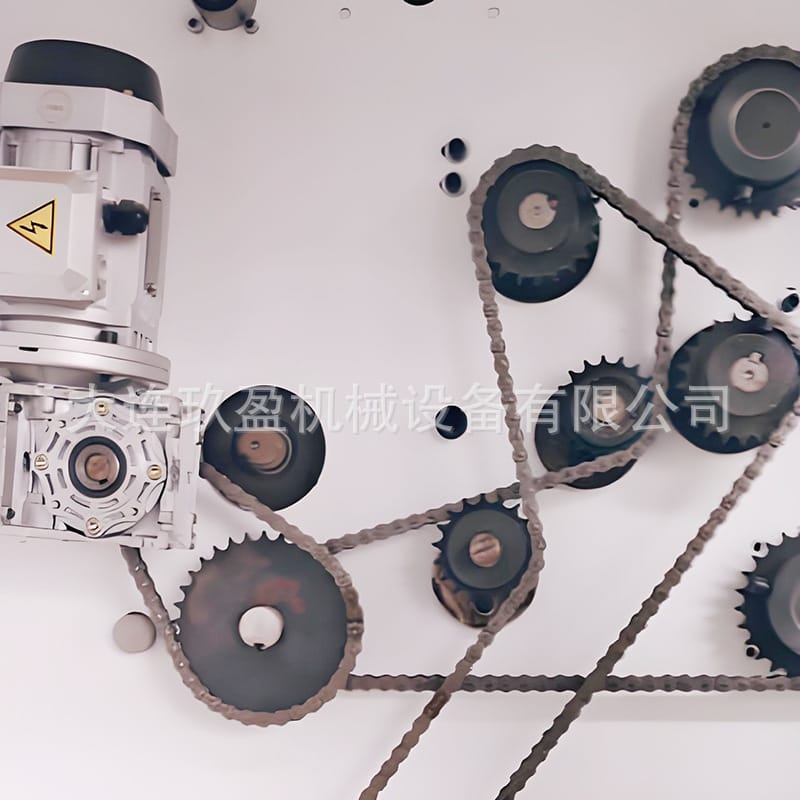

- High-Speed Synchronous Belt Drive – High transmission efficiency with low noise
- Reinforced 105mm Drive Shaft – High torque and rigidity
- Pneumatic Unwind Shaft – Fast and convenient roll change
- Wireless Remote Control – Flexible remote operation; operator can start/stop and cut from anywhere on the shop floor
- PLC Touch Screen + Auto Labeling – Intelligent and user-friendly

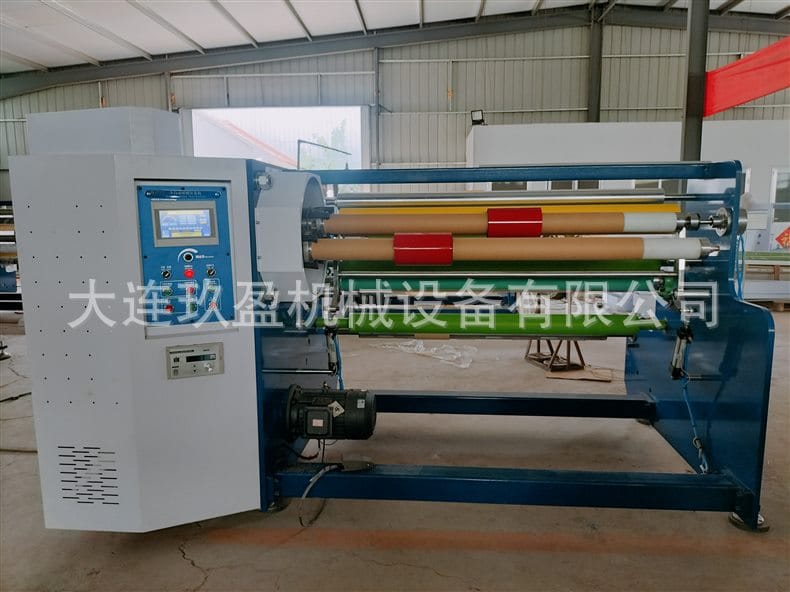

- Roller Edge Trim Collection + 4-Shaft Turret Rewind – Non-stop shaft change for continuous operation
- Triangular Soundproof Frame – Low operating noise
This model represents the highest configuration in the series, ideal for scaled production with high demands on efficiency and automation.
2.2 🏭 Factory All-Round – Full Configuration · Production Workhorse
Positioning: The all-purpose workhorse for high-volume, high-quality tape production
Key Specifications:
- Machine Dimension: 3000×1500×1500mm
- Machine Weight: 1500kg
- Frame Material: National standard 25mm thick 45# high-carbon steel
- Max Speed: 0-260m/min
- Min Slitting Width: 12mm
- Max Rewind Diameter: Φ260mm (4-shaft turret exchange)
- Motor Power: 4kW
Core Features:
- PLC touch screen + auto labeling
- Front & rear dual magnetic powder tension control
- High-speed synchronous belt drive
- Reinforced 105mm drive shaft
- Pneumatic unwind shaft
- Triangular soundproof frame
- Roller edge trim collection + 4-shaft turret rewind with non-stop shaft change
This model integrates all core functions of the high-spec version, making it the ideal choice for high-volume factory production.
2.3 ⚡ High-Efficiency General-Purpose – Volume Production · High Value
Positioning: Tape manufacturers seeking volume production with high cost-performance ratio
Key Specifications:
- Machine Dimension: 2900×1500×1500mm
- Machine Weight: 1400kg
- Frame Material: National standard 25mm thick 45# high-carbon steel
- Max Speed: 0-240m/min
- Min Slitting Width: 12mm
- Max Rewind Diameter: Φ260mm (4-shaft turret exchange)
- Motor Power: 4kW
- Max Unwind Diameter: 800mm
Core Features:
- PLC touch screen
- Auto labeling
- Triangular soundproof frame
- Reinforced steel plate frame
- Roller edge trim collection + 4-shaft turret rewind with non-stop shaft change
Built with national standard 25mm thick 45# high-carbon steel frame for superior stability, this model offers upgraded performance at an excellent value.
2.4 📦 Entry-Level – Economical · Reliable · Startup-Friendly
Positioning: The ideal choice for small tape converting operations and business startups
Key Specifications:
- Machine Dimension: 2450×1300×1450mm
- Machine Weight: 1200kg
- Max Speed: 0-220m/min
- Min Slitting Width: 12mm
- Max Rewind Diameter: Φ220mm (4-shaft turret exchange)
- Motor Power: 4kW
- Max Unwind Diameter: 800mm
Core Features:
- Roller edge trim collection
- 4-shaft turret rewind with non-stop shaft change
- Economical and practical with low investment
- Complete auxiliary equipment package (core loader/core cutter/mini rewinder)
This entry-level model offers an economical and practical solution with a full range of equipment and a low investment threshold.
3. Model Comparison at a Glance
| Feature | Fully Auto Cut-to-Length | Factory All-Round | High-Efficiency | Entry-Level |
|---|---|---|---|---|
| Max Speed | 280m/min | 260m/min | 240m/min | 220m/min |
| Min Slitting Width | 10mm | 12mm | 12mm | 12mm |
| Max Rewind Diameter | Φ260mm | Φ260mm | Φ260mm | Φ220mm |
| Machine Weight | 1800kg | 1500kg | 1400kg | 1200kg |
| PLC Touch Screen | ✅ | ✅ | ✅ | — |
| Auto Labeling | ✅ | ✅ | ✅ | — |
| Automatic Cut-to-Length | ✅ | — | — | — |
| Automatic Smoothing | ✅ | — | — | — |
| Front/Rear Dual Tension | ✅ | ✅ | — | — |
| Synchronous Belt Drive | ✅ | ✅ | — | — |
| Reinforced 105mm Shaft | ✅ | ✅ | — | — |
| Pneumatic Unwind Shaft | ✅ | ✅ | — | — |
| Wireless Remote Control | ✅ | — | — | — |
| Soundproof Frame | ✅ | ✅ | ✅ | — |
| Roller Edge Trim | ✅ | ✅ | ✅ | ✅ |
| 4-Shaft Turret Rewind | ✅ | ✅ | ✅ | ✅ |
4. Precision Engineering Details

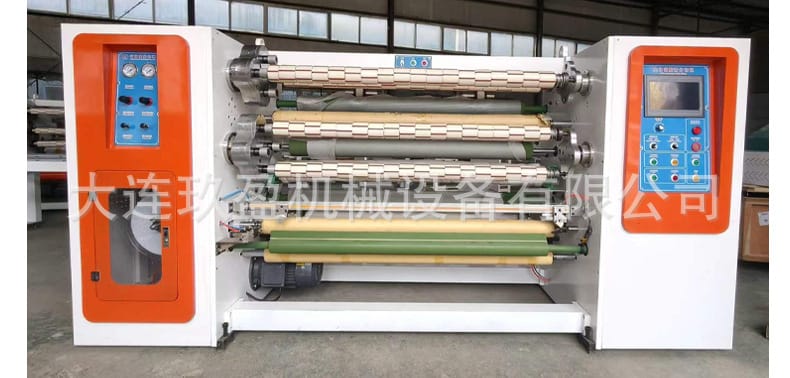

Intelligent PLC Control System: Industrial-grade 7-inch touch screen interface with一目了然 parameter settings, automatic fault alarm, recipe storage for fast job changeover.
Wireless Remote Operation: Operators can start, stop, and cut from anywhere on the shop floor,远离 rotating components – one operator controls the entire line.
Reinforced Drive Shaft & High-Carbon Steel Frame: 105mm reinforced drive shaft + national standard 25mm thick 45# high-carbon steel frame deliver exceptional rigidity and service life far exceeding standard models.
4-Shaft Turret Rewind + Dual Tension Control: 4-shaft turret exchange technology enables non-stop shaft change, boosting efficiency by up to 50%. Front and rear dual magnetic powder tension control ensures consistent tension across large and small rolls.
5. Production Process Flow
- Jumbo Roll Loading – Pneumatic shaft for quick fixation
- Automatic Unwinding – Constant tension control
- Precision Slitting – Minimum width 10-12mm
- 4-Shaft Turret Rewinding – Non-stop shaft change
- Auto Labeling / Cut-to-Length – Fully automated completion
6. Auxiliary Equipment – Complete Line Supply
Dalian Jiuying provides complete tape production line auxiliary equipment:
- Core Loading Machine – Precise paper core insertion
- Automatic Core Cutting Machine – Uniform, precise cuts
- Mini Rewinding Machine – Defective roll rework
7. Quick Selection Guide
- Maximum Efficiency / Full Automation → Fully Automatic Cut-to-Length
- Full Configuration / Production Workhorse → Factory All-Round
- Volume Production / Best Value → High-Efficiency General-Purpose
- Small Scale / Business Startup → Entry-Level
8. About Dalian Jiuying
Dalian Jiuying Machinery Equipment Co., Ltd., established in 2015, specializes in tape slitting machines, drawbench machines, straightening machines, centerless lathes, and other industrial equipment. Our products are exported to over 30 countries and regions including the United States, Italy, Russia, Vietnam, and Turkey, with CE certification and free sample testing available.
Main Products: Tape Slitting Machine, Drawbench Machine, Straightening Machine, Centerless Lathe,封头机
9. Service Commitment
- Factory Direct Pricing – No middlemen, source factory prices
- Free Sample Testing – Send us your materials for free trial cutting
- On-Site Installation & Commissioning – Professional technicians上门 + operator training
- Lifetime After-Sales Support – 24-month warranty, lifetime technical support
- Customized Solutions – Tailored production lines based on output and floor space
10. Frequently Asked Questions
Q: How do I choose among the four models?
A: Choose Fully Automatic Cut-to-Length for maximum efficiency, Factory All-Round for full configuration, High-Efficiency for volume production at best value, and Entry-Level for small-scale or startup operations.
Q: Do you offer free sample testing?
A: Yes. Customers can send materials to us for trial cutting, and we provide detailed test reports.
Q: Are your machines CE certified?
A: Yes. All models meet CE standards and are export-ready.
Q: What after-sales service do you provide?
A: 24-month warranty, free installation and commissioning, operator training, and lifetime technical support.
